Overview

The On-premises Active Directory connector enables seamless integration with Microsoft Active Directory for user and group management. This connector allows Leena AI Agents to search, retrieve, create, update, and delete user accounts and groups within your on-premises AD environment, making it ideal for identity management and authentication workflows.

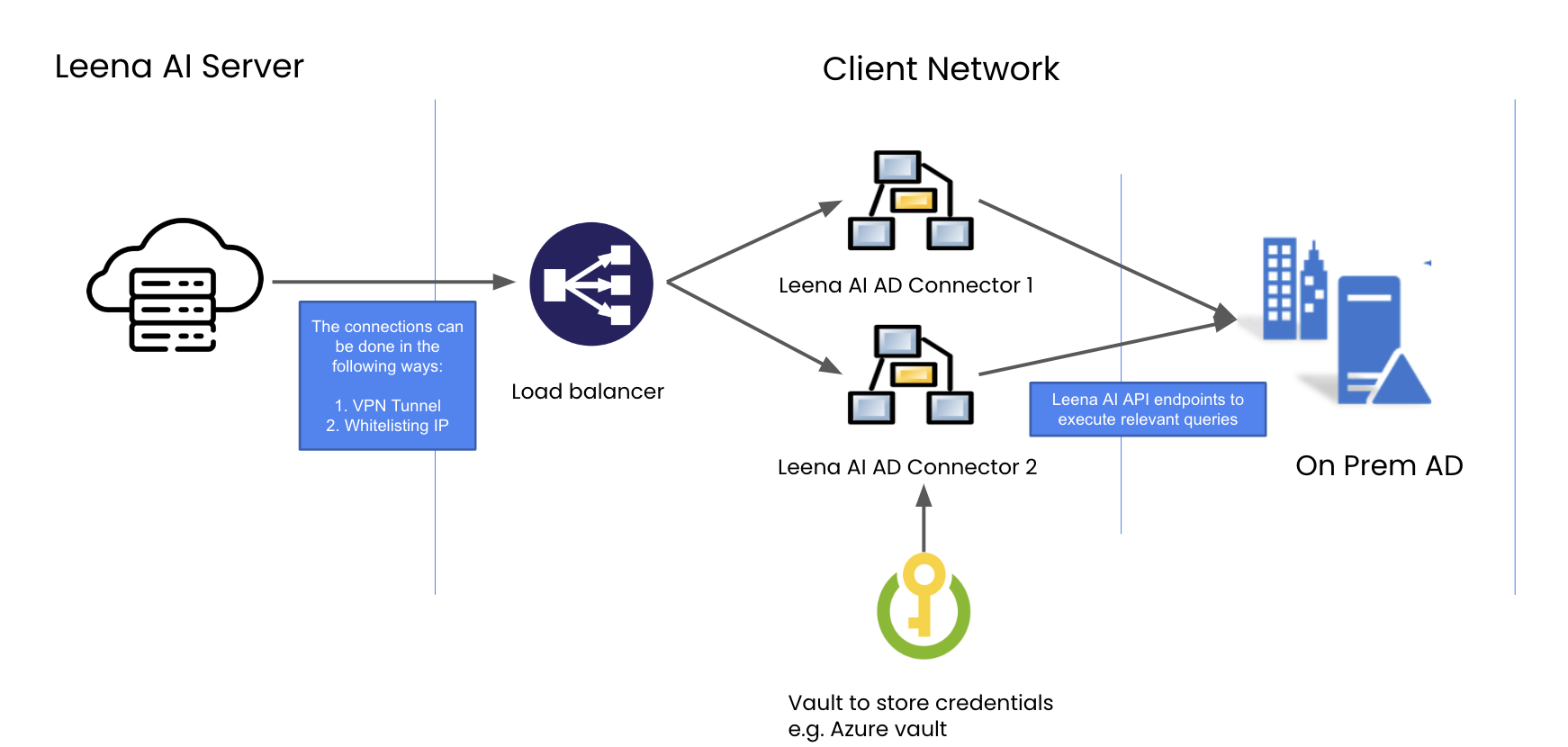

Leena AI utilizes an LDAP connector, seamlessly integrated within the same infrastructure as Active Directory.

API Details

Leena AI integrates with Active Directory via LDAP protocol.

Documentation link:

Setup

On-premises Active Directory connections require secure domain credentials to access directory information.

Prerequisites

Before setting up the Active Directory connector, ensure you have:

Server Requirements for Deploying AD Connector:

• 2vCPUs
• 4 GB RAM
• Ubuntu
• Outbound internet access from the server (Initial setup & maintenance)
• SSL certificate

Active Directory Requirements:

• List of all the AD forests, domains and subdomains and their Private IPs and DN
• Credentials to authenticate/bind with the AD (need separate credentials if there are multiple forests and credentials vary for each forest), along with appropriate permissions to perform the listed actions
• Ability to connect to the server from Leena AI's side (either via IP whitelisting or via site-to-site VPN)
• Test users, groups etc to test the privileges

Get credentials

Add connection

Here is how to add a connection on Leena AI:

1. Log in to your Leena AI workspace
2. Navigate to Settings > Integrations
3. Search for "Active Directory" and select it from the list to add its new connector
4. Start configuring the connector
   1. Domain Controller: The hostname or IP address of the AD domain controller
   2. Port: The port number for the AD server (typically 389 for LDAP or 636 for LDAPS)
   3. Domain: The Active Directory domain name (e.g., "company.local")
   4. Username: The username with appropriate permissions to access AD
   5. Password: The password for the user account
   6. Use SSL: Boolean to indicate whether to use LDAPS (LDAP over SSL)
5. Save the connector configuration

Actions

The following actions are supported for the Active Directory connector:

Search Users

This action searches for user accounts based on specified criteria. The Agent can leverage this action to find users in the Active Directory environment.

Input Parameters

Here are the input parameters required to set up this action:

Mandatory

Optional

Here is a sample JSON input:

{
  "Search Base": "OU=Users,DC=example,DC=com",
  "Search Filter": "(&(objectClass=user)(objectCategory=person))",
  "Search Scope": "Subtree",
  "Attributes": ["sAMAccountName", "displayName", "mail"],
  "Page Size": 100
}

Response

The action returns an array of matching users with their requested attributes.

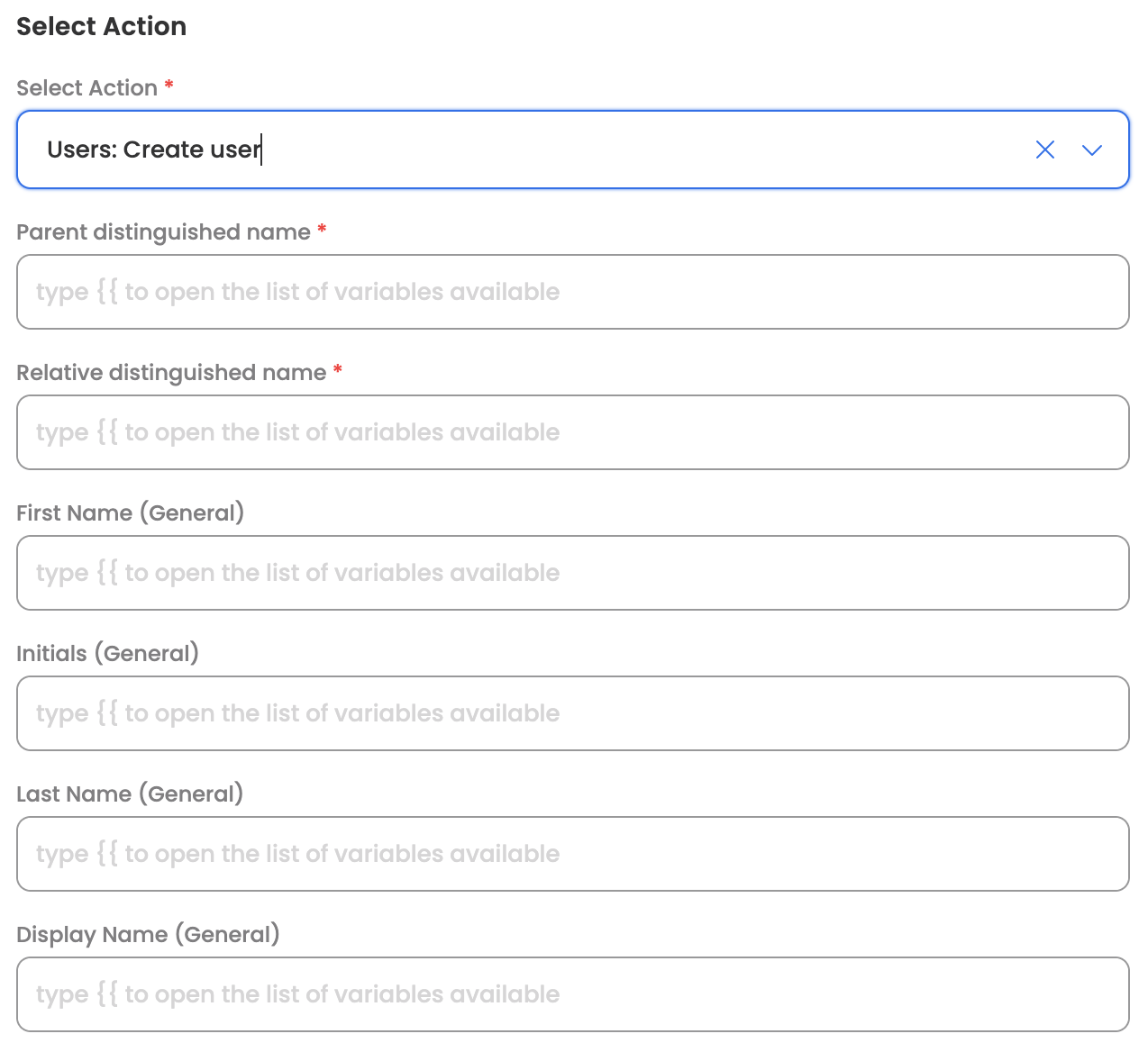

Create User

Create a new user in Active Directory. The Agent can leverage the skill (workflow), which has been designed to create a new user account in AD, once the appropriate approvals are obtained.

Input Parameters

Here are the input parameters required to set up this action:

Mandatory

Optional

Common User Attributes that can be included in the Entry field:

Here is a sample JSON input:

{
  "Forest": "production.local",
  "Parent DN": "OU=Users,DC=example,DC=com",
  "RDN": "CN=John Doe",
  "Entry": {
    "sAMAccountName": "jdoe",
    "userPrincipalName": "[email protected]",
    "displayName": "John Doe",
    "givenName": "John",
    "sn": "Doe",
    "mail": "[email protected]",
    "description": "Sales Manager"
  }
}

Response

Upon successful creation, the action returns confirmation of user creation with the user's distinguished name.

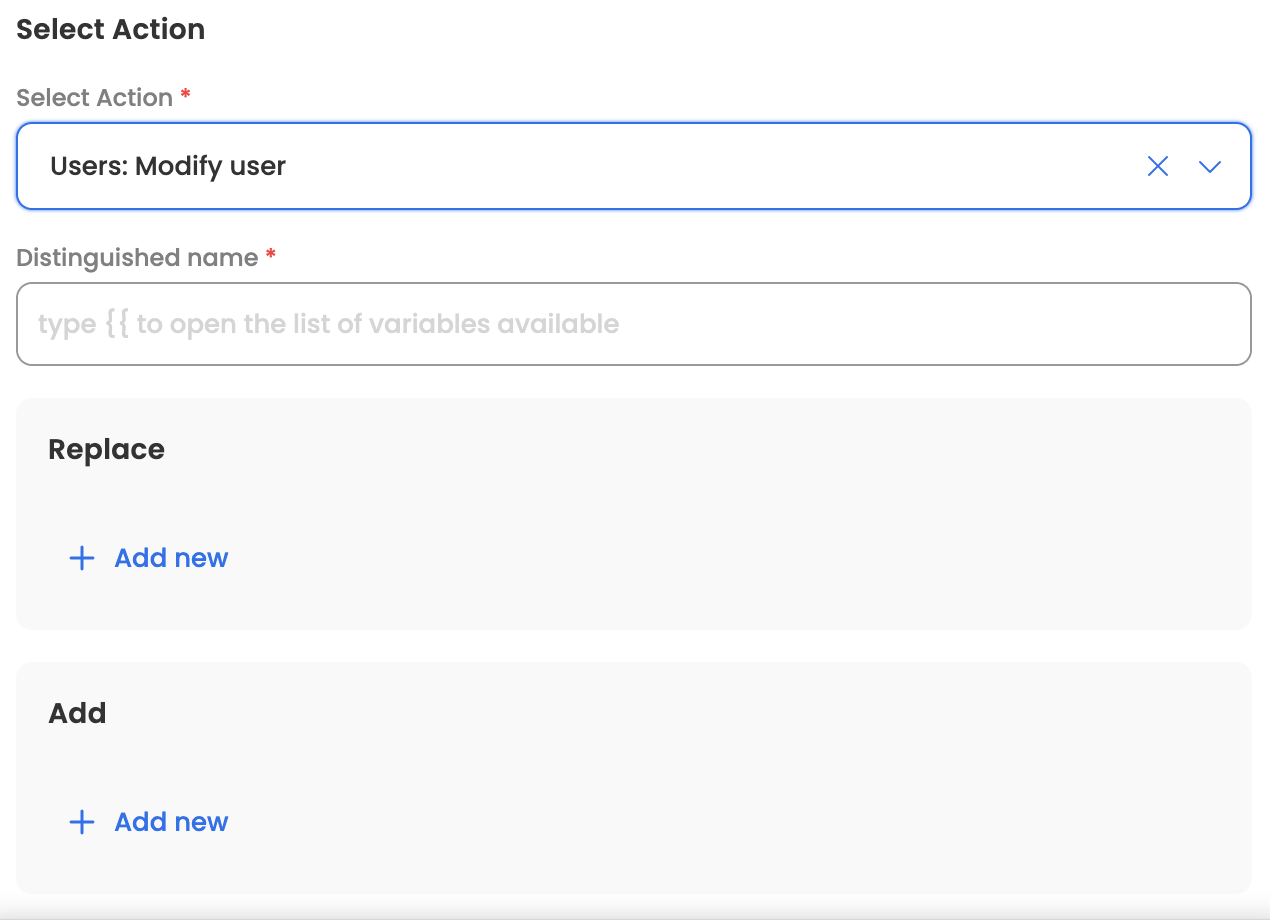

Update/Modify User

Update an existing user's attributes. Orchestrator can leverage this action to allow users to update details under AD.

Input Parameters

Here are the input parameters required to set up this action:

Mandatory

Optional

Here is a sample JSON input:

{
  "Forest": "production.local",
  "Distinguished name": "CN=John Doe,OU=Users,DC=example,DC=com",
  "Replace": [
    {"attribute": "title", "value": "Senior Manager"}
  ],
  "Add": [
    {"attribute": "proxyAddresses", "value": "[email protected]"}
  ],
  "Delete": [
    {"attribute": "description"}
  ]
}

Response

Upon successful update, the action returns confirmation of user modification.

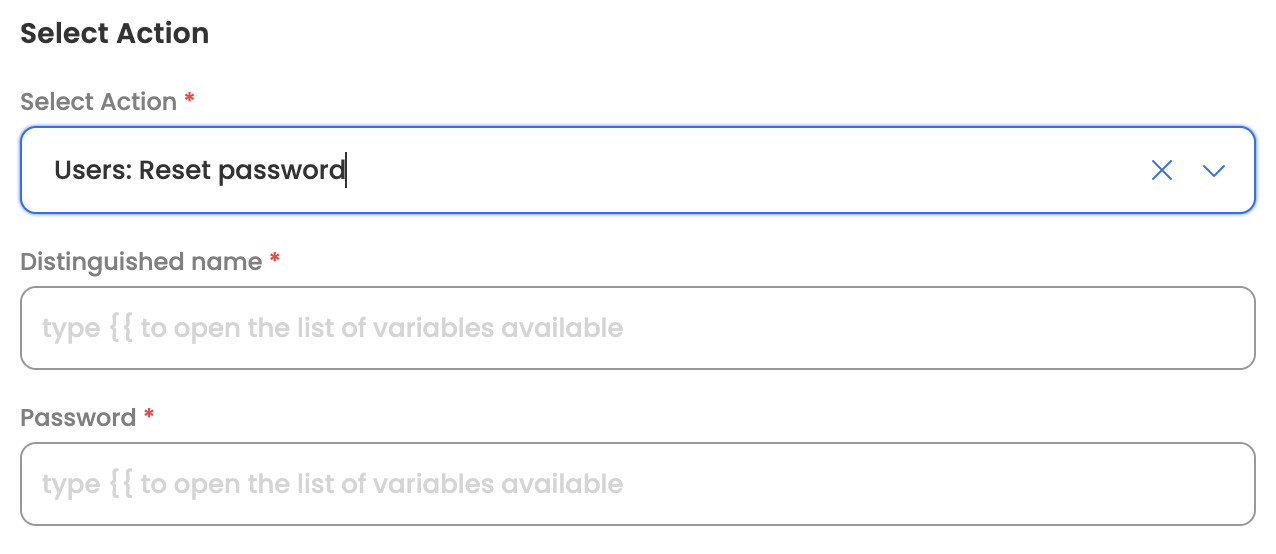

Reset User Password

Reset a user's password in Active Directory. The Agent can leverage this action when users request password resets.

Input Parameters

Here are the input parameters required to set up this action:

Mandatory

Here is a sample JSON input:

{
  "Distinguished name": "CN=John Doe,OU=Users,DC=example,DC=com",
  "Password": "SecureP@ssw0rd123"
}

Response

Upon successful password reset, the action returns confirmation of password reset.

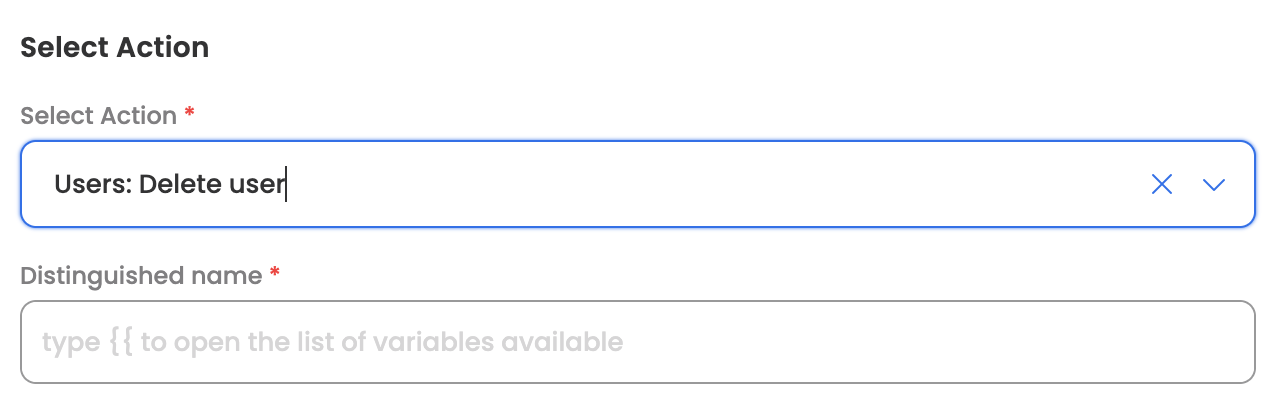

Delete User

Remove a user from Active Directory. This action can be used as a part of off boarding journey.

Input Parameters

Here are the input parameters required to set up this action:

Mandatory

Here is a sample JSON input:

{
  "Distinguished name": "CN=John Doe,OU=Users,DC=example,DC=com"
}

Response

Upon successful deletion, the action returns confirmation of user deletion.

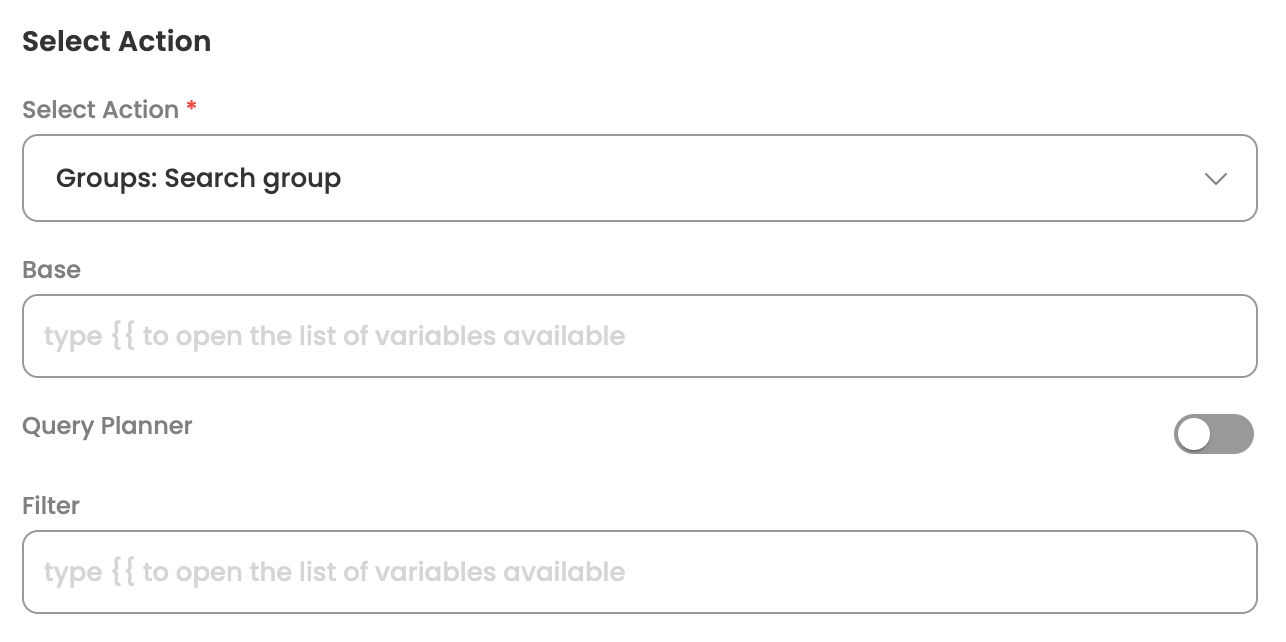

Search Groups

Search for groups in Active Directory. This action is primarily a supporting action leveraged by Orchestrator to fulfill an overall request around addition of users to a specific group or a list of groups.

Input Parameters

Here are the input parameters required to set up this action:

Mandatory

Optional

Here is a sample JSON input:

{
  "Base": "OU=Groups,DC=example,DC=com",
  "Query Planner": true,
  "Filter String": "(&(objectClass=group)(name=Sales))"
}

Response

The action returns an array of matching groups.

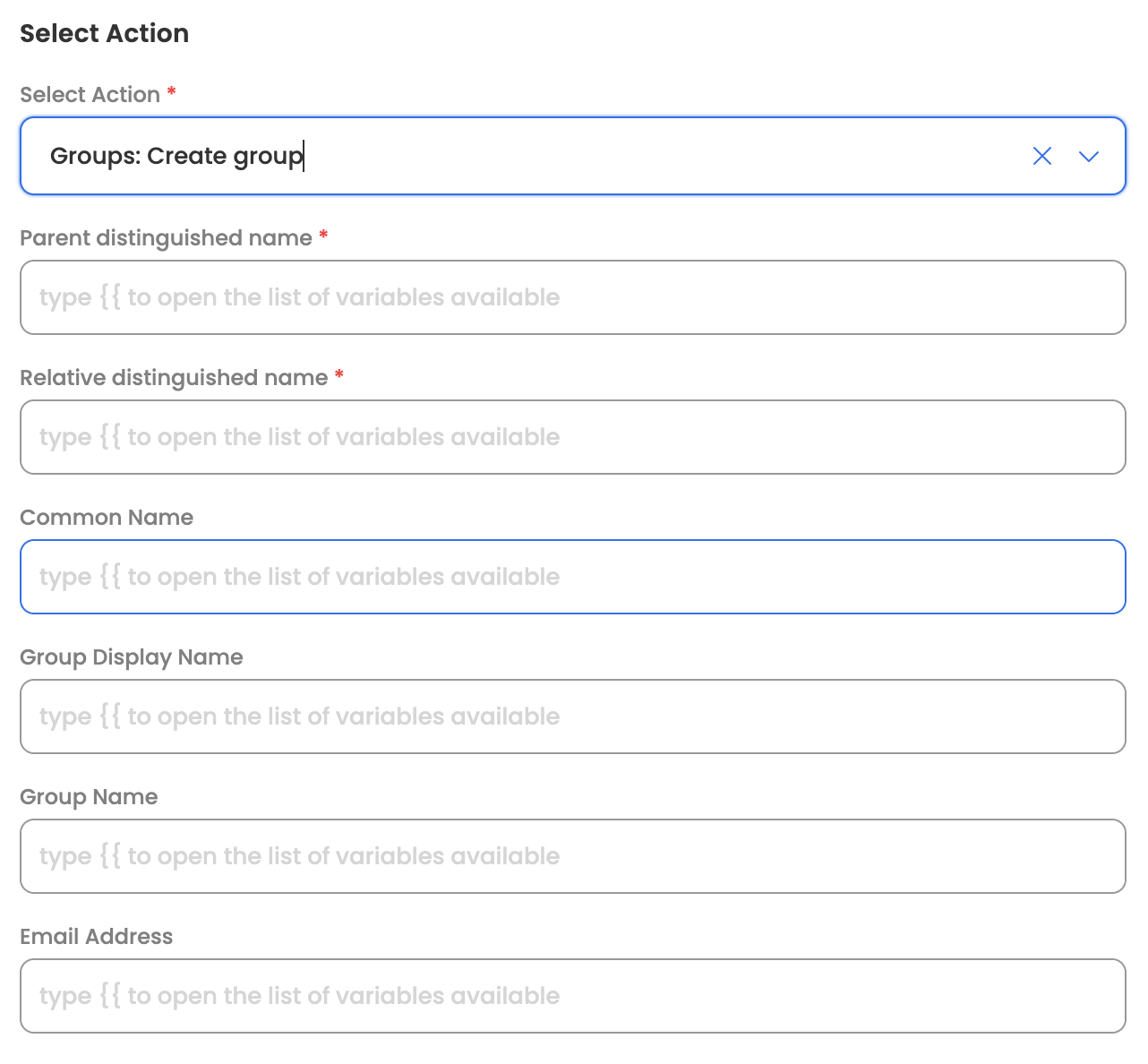

Create Group

Create a new group in Active Directory. This action can be leveraged specifically by admins/managers whenever a new Group (Security group) needs to be created in AD. This action would work in tandem with addition of users in an existing group.

Input Parameters

Here are the input parameters required to set up this action:

Mandatory

Optional

Common Group Attributes that can be included in the Entry field:

Here is a sample JSON input:

{
  "Forest": "production.local",
  "Parent DN": "OU=Groups,DC=example,DC=com",
  "RDN": "CN=Sales Team",
  "Entry": {
    "sAMAccountName": "sales-team",
    "description": "Sales department security group",
    "groupType": -2147483646,
    "mail": "[email protected]"
  }
}

Response

Upon successful creation, the action returns confirmation of group creation.

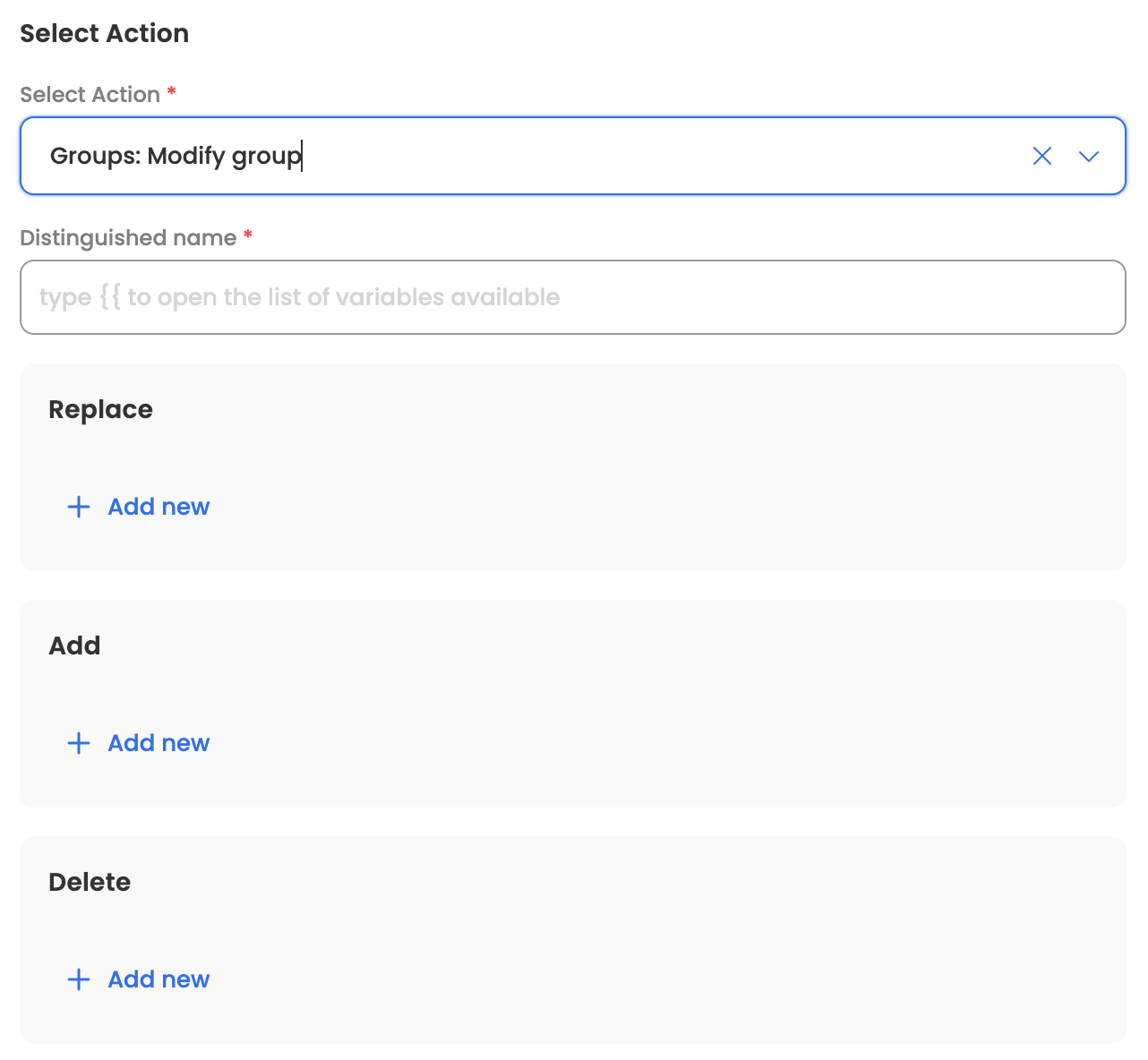

Modify Group

Update an existing group's attributes. The Agent can leverage this action to modify group properties as needed.

Input Parameters

Here are the input parameters required to set up this action:

Mandatory

Optional

Here is a sample JSON input:

{
  "Forest": "production.local",
  "Distinguished name": "CN=Sales Team,OU=Groups,DC=example,DC=com",
  "Replace": [
    {"attribute": "description", "value": "Updated description"}
  ],
  "Add": [
    {"attribute": "managedBy", "value": "CN=Manager,OU=Users,DC=example,DC=com"}
  ],
  "Delete": [
    {"attribute": "mail"}
  ]
}

Response

Upon successful modification, the action returns confirmation of group modification.

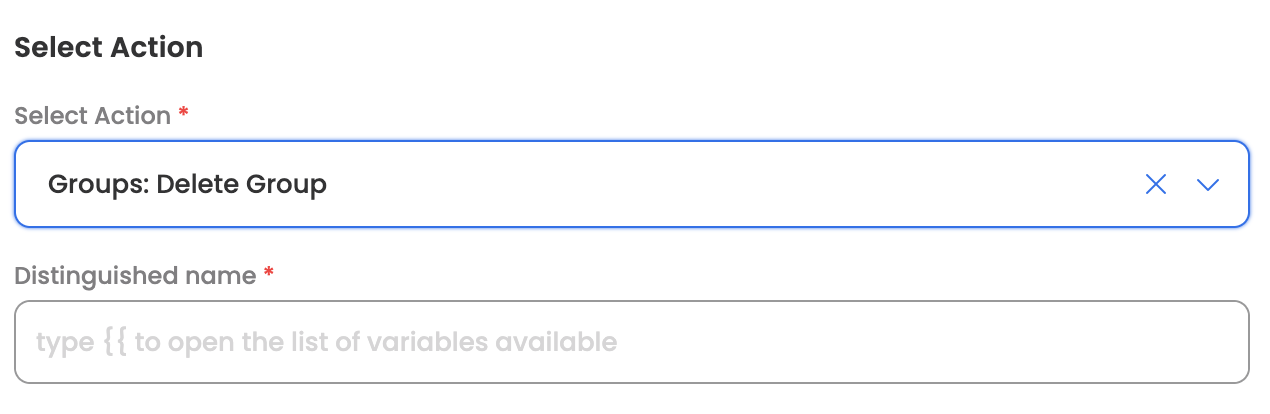

Delete Group

Remove a group from Active Directory. This action can be specifically leveraged by admins/managers to delete existing dormant groups which as a part of cleanup activity.

Input Parameters

Here are the input parameters required to set up this action:

Mandatory

Here is a sample JSON input:

{
  "Distinguished name": "CN=Sales Team,OU=Groups,DC=example,DC=com"
}

Response

Upon successful deletion, the action returns confirmation of group deletion.

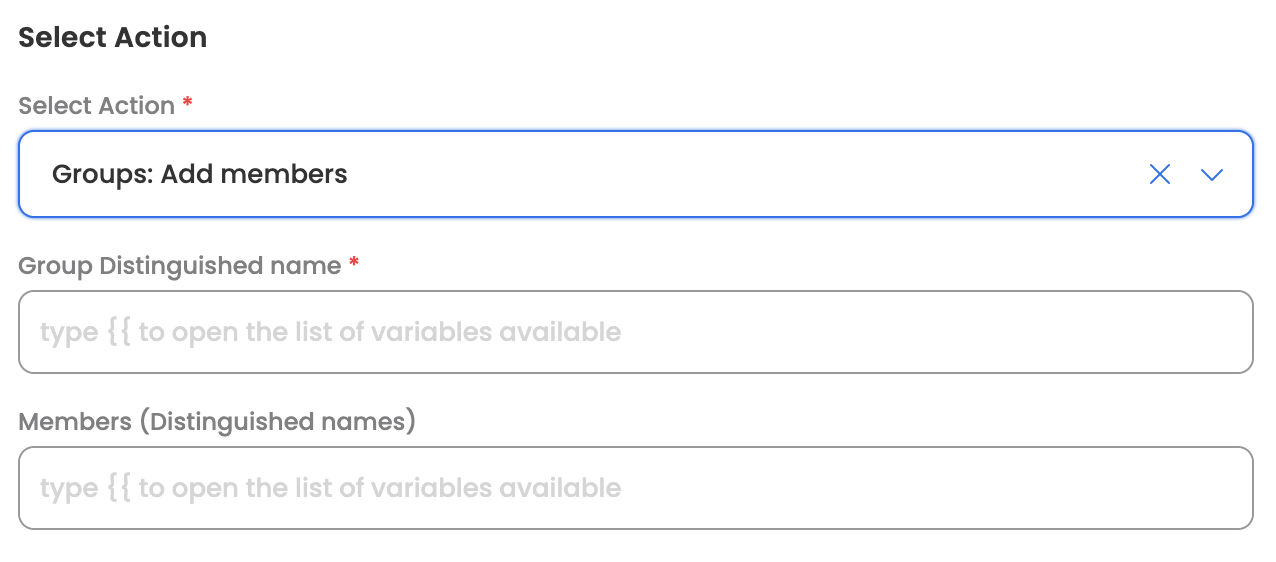

Add Members to Group

Add users to an Active Directory group. This action can be used by Onboarding Agent to add newly onboarded candidates to specific groups (which would grant them certain accesses), as governed by rules and logics.

Input Parameters

Here are the input parameters required to set up this action:

Mandatory

Here is a sample JSON input:

{
  "Distinguished name": "CN=Sales Team,OU=Groups,DC=example,DC=com",
  "Members": [
    "CN=John Doe,OU=Users,DC=example,DC=com"
  ]
}

Response

Upon successful addition, the action returns confirmation of members added to the group.

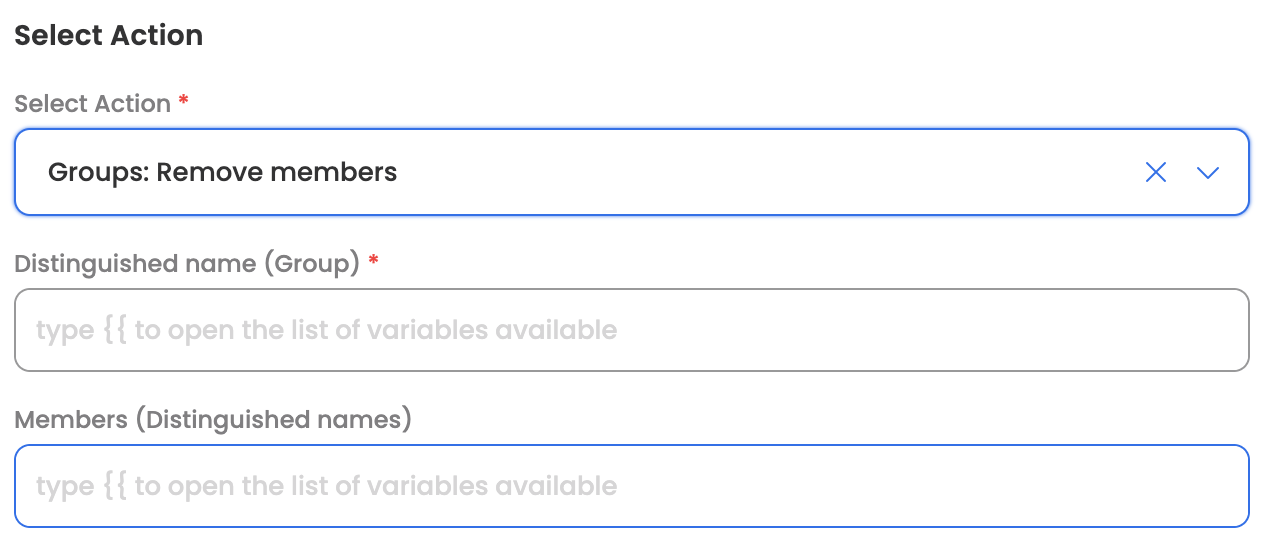

Remove Members from Group

Remove users from an Active Directory group. This action can be used by Off-boarding Agent to remove employees/users from specific groups on or before last working day (which would revoke accesses), as governed by rules and logics.

Input Parameters

Here are the input parameters required to set up this action:

Mandatory

Here is a sample JSON input:

{
  "Distinguished name": "CN=Sales Team,OU=Groups,DC=example,DC=com",
  "Members": [
    "CN=John Doe,OU=Users,DC=example,DC=com"
  ]
}

Response

Upon successful removal, the action returns confirmation of members removed from the group.
