Overview

The External AOP API lets you programmatically trigger and monitor AOP (Agent Operating Procedure) executions from your own systems. You authenticate once with OAuth client credentials, exchange them for a short-lived JWT access token, then use that token to start an AOP run and poll its status until it reaches a terminal state.

All requests use HTTPS and JSON. The API is asynchronous: the execute endpoint queues a run and returns an aop_item_id, which you use to track progress through the status endpoint.

Getting Started

Follow these four steps to get up and running:

1. Request an OAuth app from Leena AI team. You will receive a client_id, client_secret, username, and password. Leena AI will share these with you.
2. Generate an access token by calling POST https://<region-code>-acl.leena.ai/api/v1.0/oauth/token with your credentials.
3. Trigger an AOP run by calling POST https://<region-code>-aic.leena.ai/api/v1/external/aop/execute with the aop_id you want to execute.
4. (Optional) Poll the run status at GET https://<region-code>-aic.leena.ai/api/v1/external/aop/items/{aop_item_id}/status until it reaches a terminal state (completed, failed, or aborted).

How to Get the AOP ID

The aop_id required by the execute endpoint is the AOP's identifier. You can fetch it directly from the Leena AI dashboard.

Follow these steps:

1. Sign in to the Leena AI dashboard.
2. Navigate to AI Colleagues, then open the relevant colleague (for example, "IT Support Specialist").
3. Open the AOP whose ID you want to retrieve. This opens the AOP details view.
4. In the AOP details section, locate the Identifier field. The value shown there is your aop_id.
5. Copy the value and use it as the aop_id parameter in the Execute AOP request.

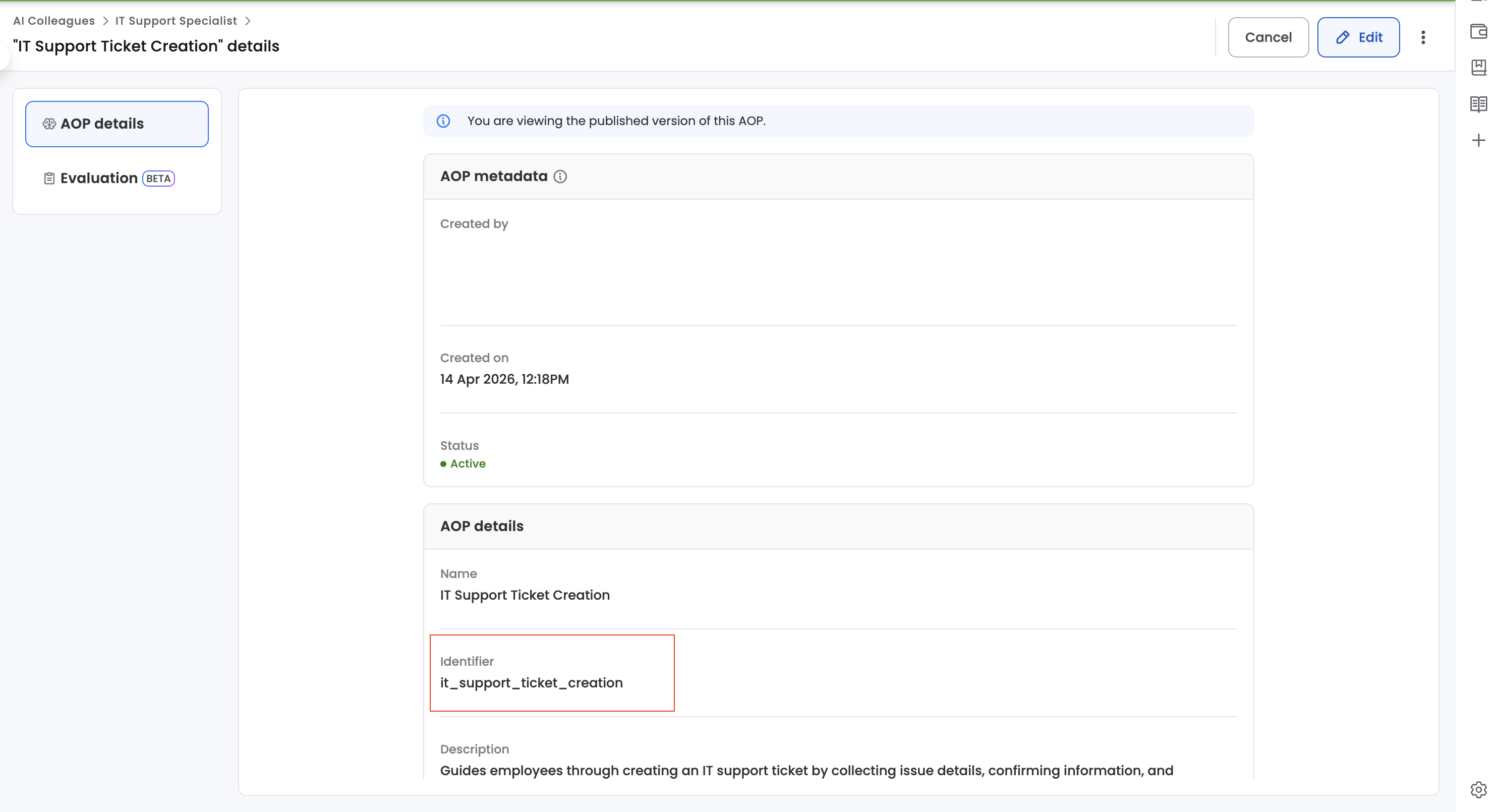

Figure 1 — The Identifier value shown on the AOP details view is the aop_id used in the API.

📘

Tip

The Identifier is a human-readable slug (e.g. it_support_ticket_creation). The execute endpoint also accepts the AOP's ObjectId, but the slug shown here is usually easier to use.

Authentication

All endpoints require a Bearer JWT token in the Authorization header. Tokens are obtained via the platform's OAuth token API.

Step 1 — Register an OAuth App

Request an OAuth app from the Leena AI team. You will receive:

Step 2 — Generate an Access Token

Exchange your credentials for a JWT access token.

POST https://<region-code>-acl.leena.ai/api/v1.0/oauth/token

Headers

Request Body

{
  "username": "<username-received-from-leena>",
  "password": "<password-received-from-leena>",
  "grant_type": "password"
}

Example Request

curl -X POST "https://<region-code>-acl.leena.ai/api/v1.0/oauth/token" \
  -H "Content-Type: application/json" \
  -H "Authorization: Basic <Base64-encoded-string-of-clientId:clientSecret>" \
  -d '{
    "username": "<username-received-from-leena>",
    "password": "<password-received-from-leena>",
    "grant_type": "password"
  }'

Response

{
  "access_token": "eyJhbGciOiJIUzI1NiIs...",
  "token_type": "Bearer",
  "refresh_token": "<Refresh-token>",
  "expires_in": 3600
}

Step 3 — Use the Token

Include the token in the Authorization header for all API calls:

Authorization: Bearer eyJhbGciOiJIUzI1NiIs...

Endpoints

1. Execute AOP

Initiate an AOP execution. The request is accepted and queued for asynchronous processing.

POST https://<region-code>-aic.leena.ai/api/v1/external/aop/execute

Headers

Request Body

Example Request

curl -X POST "https://<region-code>-aic.leena.ai/api/v1/external/aop/execute" \
  -H "Authorization: Bearer <access_token>" \
  -H "Content-Type: application/json" \
  -d '{
    "aop_id": "aop-1",
    "message_to_start": "Analyze the ticket shared",
    "context": {
      "ticket_number": "INC0503407",
      "state": "In Progress",
      "priority": "Priority 4",
      "impact": "3 - Low",
      "urgency": "3 - Low",
      "severity": "3 - Low",
      "category": "Request",
      "subcategory": "General Question",
      "short_description": "voucher approval",
      "description": "<Tickets-Description>",
      "comments_and_work_notes": "<comments>",
      "close_notes": "",
      "close_code": "",
      "contact_type": "Phone",
      "opened_at": "04/15/26 03:22:21",
      "closed_at": "",
      "resolved_at": "",
      "opened_by": "",
      "assigned_to": "",
      "assignment_group": "",
      "caller_id": "",
      "resolved_by": "",
      "closed_by": "",
      "location": ""
    }
  }'

Response — 200 OK

{
  "aop_item_id": "69e90f247276b2fa8f2766e0",
  "request_id": "69e90f237276b2fa8f2766da",
  "run_id": "ID_007762",
  "status": "accepted"
}

📘

Note

"accepted" is an acknowledgement status (analogous to HTTP 202). It means the execution has been queued, not completed. Use the status endpoint to track progress.

Error Responses

2. Get AOP Execution Status

Poll the current status of an AOP execution.

GET https://<region-code>-aic.leena.ai/api/v1/external/aop/items/{aop_item_id}/status

Headers

Path Parameters

Example Request

curl "https://<region-code>-aic.leena.ai/api/v1/external/aop/items/69e90f247276b2fa8f2766e0/status" \
  -H "Authorization: Bearer <access_token>"

Response — 200 OK

{
  "aop_item_id": "69e90f247276b2fa8f2766e0",
  "reference_id": "RPT000042",
  "status": "in_progress",
  "initiated_at": "2026-04-22T15:50:55.000000",
  "completed_at": null
}

Execution Statuses

Error Responses

Usage Pattern

A typical integration follows this flow:

1. POST https://<region-code>-acl.leena.ai/api/v1.0/oauth/token
      → get access_token

2. POST https://<region-code>-aic.leena.ai/api/v1/external/aop/execute
      → get aop_item_id (status: "accepted")

3. (Optional) GET https://<region-code>-aic.leena.ai/api/v1/external/aop/items/{id}/status
      → poll until status is terminal

Terminal statuses: completed, failed, aborted.

AIC Total Runs — Report API

The External Analytics API lets you programmatically pull AIC (AI Colleague) run-level analytics for your bot from your own systems. You authenticate with an OAuth bearer token issued by Leena AI, then call a single query endpoint with a date window and pagination parameters to retrieve a paginated list of AIC runs.

The endpoint returns the run records along with rendering metadata and pagination details. A timestamp filter is also supported for incremental polling so you only fetch runs that have been updated since your last call.

Note: Analytics data is aggregated and may be delayed by approximately 2 hours. Runs that have just completed may not appear in the response immediately; allow up to ~2 hours for new or updated runs to be reflected in the API.

Getting Started

Follow these three steps to get up and running:

• Call GET https://<region-code>-analytics-api.leena.ai/api/analytics/query/external with the required query parameters (metricId, responseType, from, to) and optional pagination parameters.
• Optionally — for incremental polling, persist the latest timestamp from your previous response and pass it back as filters[timestamp][gt] to fetch only runs that have changed since.

Endpoint

1. Get AIC Total Runs

Returns a paginated list of AIC runs for your bot over a date window. The endpoint is read-only and idempotent.

GET https://<region-code>-analytics-api.leena.ai/api/analytics/query/external

Headers

Query Parameters

Example Request

curl -G 'https://<region-code>-analytics-api.leena.ai/api/analytics/query/external' \
  -H "Authorization: Bearer $TOKEN" \
  --data-urlencode 'metricId=aic:totalRunsTable' \
  --data-urlencode 'responseType=table' \
  --data-urlencode 'from=2026-04-01' \
  --data-urlencode 'to=2026-05-01' \
  --data-urlencode 'page=1' \
  --data-urlencode 'limit=100'

Response — 200 OK

Example Response

{
  "isSuccess": true,
  "result": {
    "columns": [ ... ],
    "rows":    [ ... ],
    "total":   1234,
    "page":    1,
    "limit":   100
  }
}

Row Fields

Each entry in result.rows represents a single AIC run and contains the following fields:

Polling for New Runs — the Timestamp Filter

The timestamp field is the time when a run was last updated on Leena AI's side. Passing filters[timestamp][gt]=<value> returns only runs that have been updated after that timestamp.

If you save the latest timestamp from your previous response and pass it back as filters[timestamp][gt] on the next call, you will only receive runs that have changed — there is no need to re-pull the entire window. Use gt (greater than) so the boundary row is not returned twice.

Recommended Polling Pattern

• On the first call, fetch the full window using from / to and page through all pages until result.total is exhausted.
• Track the maximum timestamp value seen across the returned rows.
• On subsequent calls, pass that maximum timestamp back as filters[timestamp][gt] to receive only updated runs.
• Persist the new maximum timestamp from the response and repeat.

Errors

Usage Pattern

A typical integration follows this flow:

1. Obtain an OAuth bearer token using token api.
2. GET https://<region-code>-analytics-api.leena.ai/api/analytics/query/external with metricId, responseType, from, to, page, limit → returns { isSuccess, result: { columns, rows, total, page, limit } }
3. (Optionally) On subsequent polls, pass filters[timestamp][gt]=<lastSeen> → returns only runs updated since the last call.

Region Codes and Endpoints
